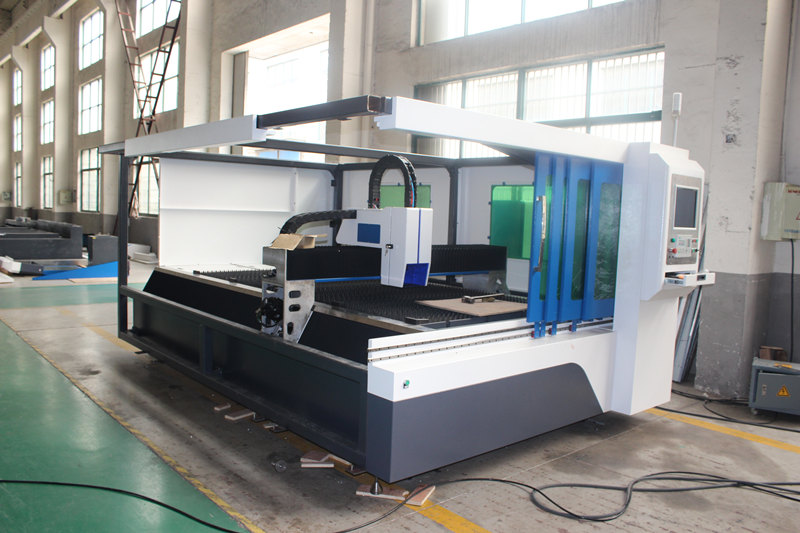

500w Fiber Laser Cutting Machine with 1500x3000mm Stainless Steel
Incredibly fast and flexible, the ACCURL Genius 500w fiber laser cutting machine is ideal for ultra-high speed cutting of thin sheet materials.the Genius has the ability to cut a wide range of ferrous and non-ferrous metals while maintaining low cost operation.
General Features:
♦ User friendly Cypcut Windows CAD/CAM CNC control unit.
♦ Unique features:
√ Maximum simultaneous positioning speed: 160m/min.
√ Acceleration speed: 14 m/ s2 (1.5G).
√ Precision: + - 0.05 mm.
√ Energy efficiency: greatly reduced power consumption.
√ IPG Resonator. Power output from 500w
♦ Ray Tools cutter cutting head with power output up to 2kw.

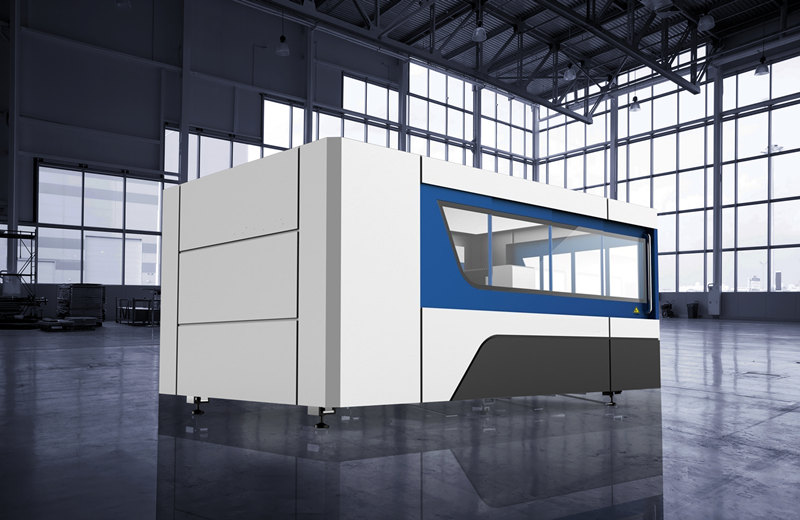

♦ Fully enclosed and cabinned to ensure máximum operator protection.
♦ Effective high to low pressure gas exchange system.
♦ Capacitative Sensor, high pressure cutting head.
♦ Automatic mechanized Nesting power output control function.
♦ Automatic time and unit cost calculation function.
♦ Network connection from external.
♦ Smoke extraction (included in series models).
♦ Collection of work pieces and trimmings.
♦ Dual proportional valve control system for different gas pressures and special system for high
Technical Specification:
| Laser power | 500W Fiber Laser Cutting |
| Laser source | America/Russia IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 10KW |
| Position accuracy X, Y and Z axle | ±0.03mm |
| Repeat position accuracy X, Y and Z axle | ±0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 600kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit:
| Material | Cutting Thickness Limit |
| Carbon steel | 6mm |
| Stainless steel | 3mm |
| Aluminum | 1mm |
| Brass | 1mm |
| Copper | 0.5mm |
Main Parts:
| Article Name | Remark |
| Fiber laser resonator | IPG (America/Russia)/500W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | HAN LI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
