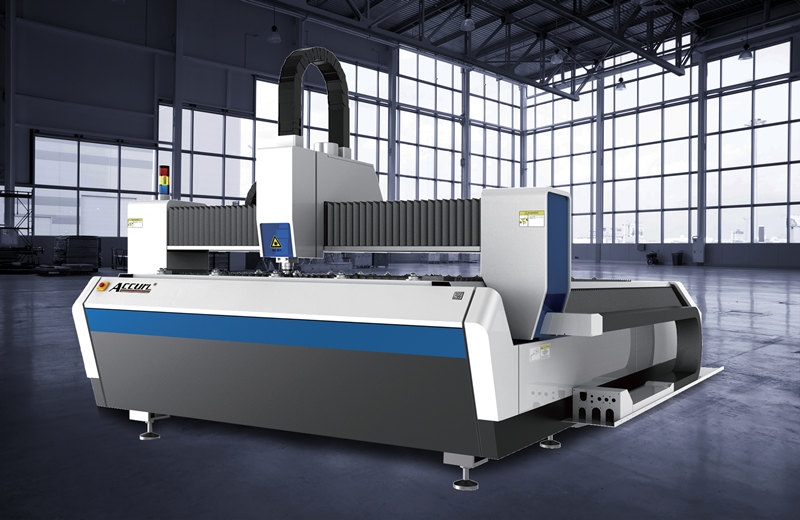

700W Fiber Laser Cutting Machine for Sale Metal Steel Cutting 1500x3000mm
ACCURL 700w Fiber Laser Cutting Machine team now introduces its newest generation in tube and profile processing technology-the fiber laser cutting system. Technological innovation has brought us the Smart KJG Series. With exceptional reliability and high beam quality, our fiber laser cutting machines continue to be leaders amongst the competition.
Applicable Industries:
Widely used in Kitchen cabinets, Door processing, lighting hardware, chassis cabinets, advertising signs, elevator manufacturing, sheet metal processing and home appliances.
Standard Equipments:
√ User friendly Cypcut Windows CAD/CAM CNC control unit.

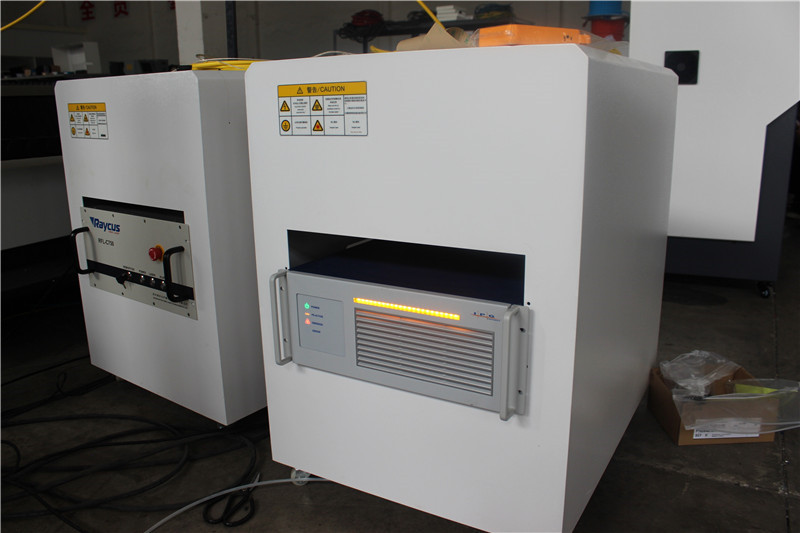

√ IPG YLS-700W Ytterbium Laser Resonator
√ Unique features:
√ Very easy to operate.
√ Quick and easy installation.
√ Low investment and operating costs.
√ The most cost-efficient solution for every requirement.
√ Flexible beam path
√ High output power
√ High optical quality
√ Up to %300 faster cutting
√ High wall plug efficiency (>%30)
√ Copper, brass cutting ability

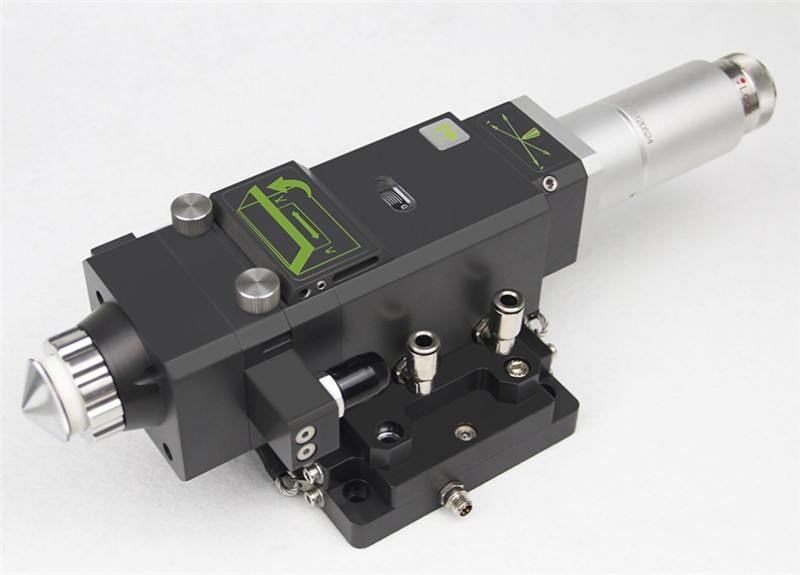

√ Advanced Raytools cutting head (with air cross blast).

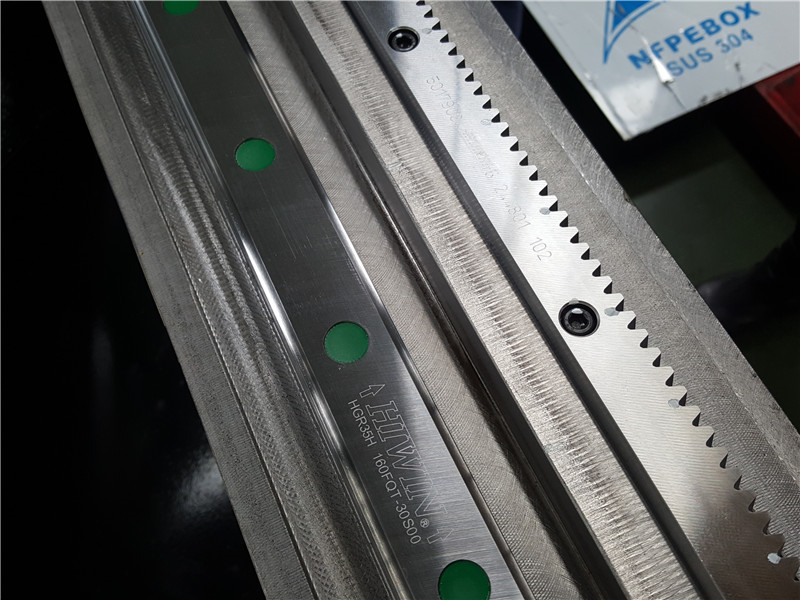

√ High performance and high accuracy rack and pinion system.
Technical Specification:
| Laser power | IPG 700W Fiber Laser |
| Laser source | America / Russia IPG fiber laser resonator |
| Processing surface(L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 12KW |
| Position accuracy X, Y and Z axis | +0.03mm |
| Repeat position accuracy X, Y and Z axle | +0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 800kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit:
| Material | Cutting Thickness Limit |
| Carbon steel | 8mm |
| Stainless steel | 5mm |
| Aluminum | 3mm |
| Brass | 3mm |
| Copper | 2mm |
