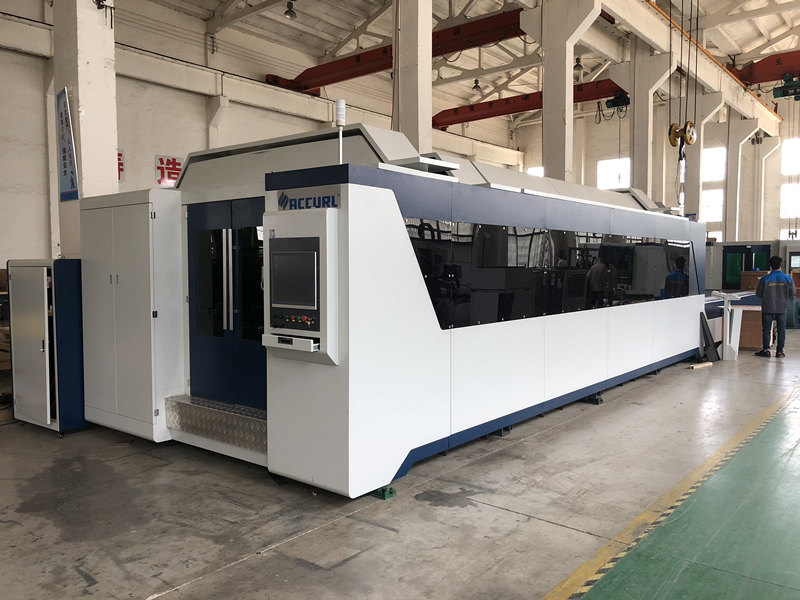

8000W Fiber Laser Cutting Machine for High Power Laser Cutter Stainless Steel
The IPG 8Kw Fiber Laser cutting machines with ECO-FIBER-2060 achieve cutting speeds of up to 150 m/min and acceleration of nearly 2.5G; they guarantee the best quality, precision and efficiency.and the steel laser cutting machines are available with 1 to 12 kW fibre lasers cutting for Stainless Steels, Aluminum, Carbon Steels.
The 8000w fiber laser cutter ECO-FIBER-2060 Equipped with unique INTELLIGENT SET-UP FUNCTIONS including Auto Nozzle Changing and Auto Focus Positioning as well as INTELLIGENT MONITORING FUNCTIONS.
Cutting speed: Max 150 m/min
Positioning: 180 m/min
Accelerations: 2.5G
Laser sources: IPG YLS-8000W Ytterbium Laser Resonator
BECKHOFF CNC Controller - standard equipment for Optimum cutting with high-speed and high-accuracy can be performed by automatic setup-effective for both thin worksheets and thick plates
The 8kw fiber source and optics chain developed by IPG generate a high power density laser beam which allows high-speed cutting (up to 180 m/min) on medium and thin materials, without sacrificing high quality when cutting thicker material.
Fiber Lasers provide innovative solutions:
1. Perfect results on variety of material
2. Efficient and precise cuts on thick and thin material
3. Low investment and operating costs
4. Modern and compact design
5. Fast service with remote control
Standard Equipment:
√ Germany BECKHOFF CNC Controller
√ IPG YLS-8000W Ytterbium Laser Resonator
√ LaserMech FiberCut 2D Head cutting head
√ Automatic Double Pallet Changer(Shuttle Table)
√ Precision Rack & Pinion Drive System (Made in Germany)
√ Radan or Lantek CAD/CAM system
√ Light source
√ Chiller
√ 3 lower protective lenses
√ Operates with both N2 and O2 (cutting) gases
√ Home Position Alignment System
√ Auxiliary Gas Selector
√ Auto Reflection Warning
√ Working Lights
√ 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)
Optional Equipments:
√ Automatic beam centering system.
√ Linear motor technology
√ Laser Safety Barrier
√ Precise cutting head
√ Automatic sheet metal loading and unloading system.
√ Compressor
√ 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW – 12KW Laser power options available.
Maximum cutting thickness:
available laser sources (1,07μm) | 3kW | 4kW | 5kW | 6kW | 8kW | 10kW | 12kW | |
carbon steel | [mm] | 20 | 20 | 25 | 30* | 40* | 50* | 60* |
stainless steel | [mm] | 15 | 20 | 25 | 30* | 40* | 50* | 60* |
aluminium | [mm] | 12 | 15 | 20 | 30* | 35* | 40* | 50* |
brass | [mm] | 6 | 8 | 10 | 12 | 15 | 20 | 30* |
cooper | [mm] | 6 | 6 | 8 | 10 | 15 | 20 | 25 |
* values achieved in conditions dependent on the quality of the material processed, the quality of the cutting gases, the quality of service and the NC program, and the state of the spare parts
Specification:
Model | [um] | ECO-FIBER-1530 | ECO-FIBER-2040 | ECO-FIBER-2060 |
length | [mm] | 8900 | 10500 | 14500 |
width | [mm] | 2320 | 2920 | 2920 |
height | [mm] | 2150 | 2150 | 2150 |
weight | [kg] | 15000 | 19000 | 26000 |
X axis | [mm] | 3060 | 4060 | 6160 |
Y axis | [mm] | 1540 | 2040 | 2040 |
Z axis | [mm] | 120 | 120 | 120 |
max. sheet weight | [kg] | 900 | 1500 | 2500 |
* We also manufacture larger machines with non-standard dimensions (2560, 3080, 3060, 3080,25120, 25160; 30160) - please contact us.
Max. Speeds | |
parallel to X,Y,Z axis | 150 [m/min] |
simultaneously | 180 [m/min] |
repeatability | 0,03 [mm] |
cutting precision | 0,1 [mm] |
accelerations | 30 [m/s2] |
min. programmable measurement path | 0,001 [mm] |
